I-China LMZBJ-10Q Uhlobo Lwebhasi Isiguquli Samanje Esinefektri Yokulinganisa Nabakhiqizi |Aiso

I-LMZBJ-10Q Uhlobo Lwebhasi I-Transformer Yamanje Ene-metering

Yenza Imisebenzi Engcono Emisebenzini Eyidingayo

U-Yueqing Aiso uthola ukwethenjwa kwekhasimende ngenxa yedumela labo elifakazelwe lokwethembeka, ukusebenza nempilo ende.Izinto zikagesi ezivela e-Yueqing Aiso ziyatholakala kubakhiqizi bemishini yoqobo (i-OEM) ukuze bazifake ekufakeni kwabo noma ukuze zisetshenziswe ekulungiseni, ekubuyiseleni nasekuthuthukiseni amaphrojekthi.
Kungani u-Yueqing AIso?
1,Ukusekelwa okugcwele kobunjiniyela nobuchwepheshe: Abakhiqizi abangochwepheshe abangu-3, nethimba lenkonzo yezobuchwepheshe.
2,Ikhwalithi inguNo1,isiko lethu.
3, Izikhathi zokuhola ngokushesha: “Isikhathi siyigolide” kuwe nakithi
Impendulo esheshayo ye-4,30min: sineqembu lochwepheshe, 7 * 20H

THUMELA I-IMEYILI KITHI

I-LMZBJ-10QI-Transformer Yamanje Yohlobo Lwebhasi Nge-metering

Isifinyezo

Lesi siguquli samanje siwuhlobo lwebhasi yohlobo lwe-epoxy resin esakaza ukuvaleka okuvalekile, okusetshenziselwa ngaphakathi endlini ukuze kulinganiswe i-voltage efinyelela ku-10 kV, elinganiselwe imvamisa engu-50 HZ ac circuit njengesilinganiso samandla kagesi namandla kagesi kanye nokuvikelwa kwe-relay.

Imitha ye-transformer yamanje iguqula i-transformer yamanje ye-metering

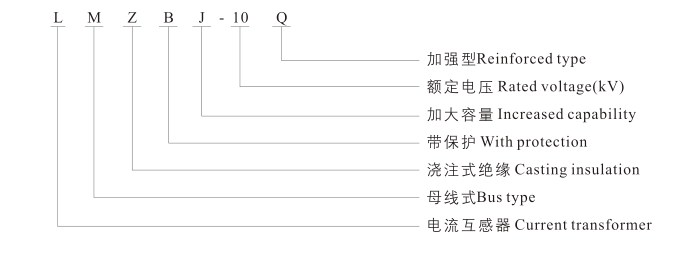

Thayipha igama

Ipharamitha yobuchwepheshe

Uhlobo	I-Ratde primary current(A)	Izigaba zokunemba(1S/2S)	Ikalwe okwesibili(1S/2S)	Isisindo(kg)
I-LMZ1-10Q	300	0.2/10p10	5/15	4.5
	300	0.5/10p10	10/15	4.5
	400-100	0.2(0.5)10p10	10/15	8
I-LMZJ1-10Q	1200-1500	0.2/10p15	30/80	26
		0.5/10p15	40/80
		10p10/10p10	40/40
	2000-3000	0.2/10p15	40/100	27
		0.5/10p15	60/100
		10p10/10p10	60/60
	4000-5000	0.2/10p15	40/100	27
		0.5/10p15	60/100
		10p15/10p15	60/60
I-LMZBJ-10Q	1200	0.5/3 0.5/10p 0.2/10p	10/15	28
I-LMZBJ-10Q	1500 2000-4000	0.5/10p 0.2/10p	40/80 60/100	28
